Ferrite Core for High-Frequency Transformer, ER

E-Type Cores, Ferrite Components and Accessories, ETD Cores

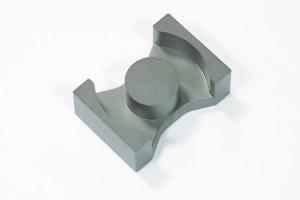

 ER Core

Based on innumerous times of experiments, we successfully find over 10 types of raw materials that are suitable for making Ferrite Core and develop more than 900 types of ferrite core that have different shapes and specifications.

Application
Drive transformers, high-frequency transformers, power inductors, high-frequency choke coils
One outstanding advantage of the electroFerrite Core lies in the utilization of high-temperature low-consumption material and high magnetic permeability material, which ensure an ultra-low power loss at a high temperature.
To better service our most-valued customers, we can also customize smaller-size ferrite cores. Please feel free to let us know about your requirements.

Packaging
Before leaving the factory, all magnetic products must be well packed to avoid any possible breakage or damage. Additionally, the packaging manner can also be decided by customers.

Technical Parameters
Name Drawing No. Dimensions Weight Parameters (mm) AL±25% (nN/H2)
A B C D E F (g) C1 (mm-1) Ae (mm2) Le (mm) Ve (mm3) AW (mm3) AMIN (mm2) JF40
ED28 961 28.0±0.3 20.5 min 8.5±0.15 11.9±0.15 6.65±0.15 10.2±0.2 21.9 0.6 90 50.3 4510 163.6 84.49 2700
ED2822 724 28.0±0.5 20.6 min 8.5±0.2 11.8±0.3 7.1±0.2 10.9±0.2 25 0.568 86.1 50.5 4350 178.9 81.42 3000
ED29 942 29.3±0.3 21.6 min 8.4±0.2 11.6±0.2 11.0±.2 14.6±0.2 29.5 0.8 90 69.2 6220 297 83.52 2700
ED2920 775 29.3±0.7 21.5 min 8.5±0.3 11.6±0.3 6.85±0.2 10.2±0.2 23 0.617 84 51.7 4360 187.7 77.72 3000
ED2929 775 29.3±0.7 21.5 min 8.5±0.3 11.6±0.3 11.0±0.2 14.6±0.2 30 0.826 84.1 69.5 5850 301.4 82.36 2700
ED3021 813 30.5±0.7 23.1 min 8.4±0.2 11.6±0.2 7.2±0.2 10.8±0.2 24.5 0.712 79.6 56.7 4517 221.8 77.72 3000
ED3321 725 33.3±0.7 25.3 min 8.4±0.2 11.6±0.2 7.1±.2 10.7±0.2 25.2 0.786 71.12 55.91 3976.9 249.9 83.52 3000
ED4140 1280 40.8±0.5 30.8±0.5 11.0±0.3 21.9±0.3 14.5±0.2 19.8±0.3 106 0.41 229 94 21665 287.1 219 5400
ED42 836 42.9±0.5 28.5±0.5 15.0±0.3 29.0±0.4 7.4±0.2 14.6±0.2 140 0.16 402 65.9 26491 199.8 417.6 11000
ED48 840 48.0±0.5 33.5±0.5 14.5±0.2 29.2±.2 9.0±0.15 16.4±0.2 166 0.21 374 78.6 29398 342 423.4 8600
