Ferrite Core for Drive Transformer, G

Drive Transformer Cores, Magnetic Element, Ferrite Core

 G Core

With 40 years of experience and expertise, we have owned tens of materials and independently designed more than 900 kinds of Ferrite Core with different shapes and specifications.

Application: Drive transformer, high-frequency transformer, power inductor, high-frequency choke coil

Main Advantages
1. In order for quality assurance, we selected reliable raw material manufacturers. Main ferric oxide suppliers include Japan JFE, Korea RG and China Steel Corporation. Main manganous-manganic oxide manufacturers are Hunan Special Metal Materials Factory and Kingray New Materials Science & Technology Co., Ltd.
2. To ensure great quality and high cost effectiveness, our company imported Toshiba kilns, Tamagawa presses and state-of-the-art CNC grinding machines, as well as brought in advanced sintering techniques and forming techniques. That's why we can achieve an annual production of 12,000 tons.

Packaging
Before leaving the factory, all magnetic products must be well packed to avoid any possible breakage or damage. Additionally, the packaging manner can also be decided by customers.

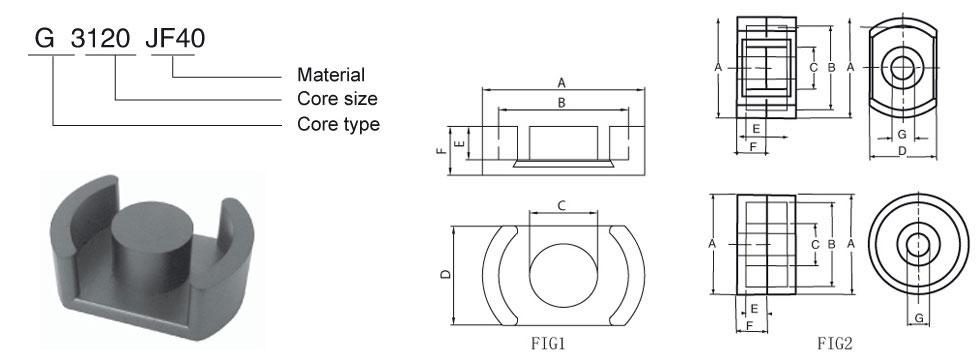

Technical Parameters
Name Drawing No. Dimensions (mm) Notes Weight Parameters AL±25% (nN/H2)
A B B2 C D E F (g) C1 Le(mm) Ae(mm2 ) Ve(mm3 ) AW (mm²) Amin(mm²) JF40 JF44
G2310 1500 22.7±0.45 18.3±0.4 9.7±0.2 15.25±0.3 3.9±0.2 5.2±0.2 9.7 0.58 30.42 52.28 1591 33.5 39.65 4000
G28 1531 28.0±0.6 16.0±0.3 22.0±0.4 4.0±0.2 12.0±0.3 Without pin
G3014 1045 30±0.4 24.6±0.4 17.2min 12.4±0.2 20.3±0.25 4.25±0.15 7.15±0.15 35 0.4 45.2 118 6984 51.9 116.58 5500 6000
G3019A 1502 30.0±0.5 25.5±0.3 18.8min 13.2±0.2 20.3±0.3 6.7±0.2 9.5±0.2 30.4 0.46 50 108.1 5408 5000
G30C 1513 30.0±0.4 24.6±0.4 17.1±0.3 12.4±0.2 20.3±0.25(20.22) 5.125±0.15 8.025±0.1 Double-gap 25.4 0.36 42.9 120.6 5171.5 5800
G3120 806 31.0±0.5 24.8min 16.8min 13.0±0.2 20.4±0.3 6.8±0.2 10.0±0.2 36.2 0.35 41.7 119 4930 80.2 132.73 5000 5500
G3312 877 33.20±0.5 26.60±0.40 13.50±0.2 23.7±0.30 3.20±0.15 6.10±0.15 32.1 0.27 39.2 144.3 5655 41.9 137.46 8000
G3319 877 33.2±0.5 26.6±0.4 13.5±0.2 23.7±0.30 6.5±0.15 9.4±0.15 41.5 0.33 48.6 147 7144 85.2 137.46 5000
G3318B 1044 33.3±0.4 26.8±0.4 18.2min 13.8±0.2 24±0.3 6.2±0.15 9.2±0.15 41.5 0.3 48.6 147 7144 80.6 144 5500
G33C 1520 33.5±0.5 26.8±0.5 18.2min 13.3±0.2 23.35±0.35 3.1±0.2 5.6±0.2 Single-gap 26.3 0.21 29.7 143 4247.1 5000
G3319D 1525 33.2±0.5 26.8±0.4(26.9) 18.5min 13.4±0.2 23.7±0.3 6.75±0.15 9.55±0.15 37 0.39 53.5 138.8 7431.4 5500
G3319E 1705 33.3±0.4 26.8±0.4 17.2min 13.8±0.2 24.0±0.3 6.7±0.15 9.7±0.15 Double-gap 41.5 0.33 48.6 147 7144 85.2 137.46 5000
G3420 858 33.7±0.5 27.5min 20.6±0.4 13.7±0.2 24.0±0.3 7.2±0.15 10.0±0.2 44.2 0.33 50.4 151 7610 102.2 133.17 5500 6000
G34A 858-1 33.7±0.5 27.5min(28) 20.9±0.4 13.7±0.2 24.0±0.3(23.9) 7.2±0.15 10.0±.2 44.2 0.33 50.4 151 7610 102.2 133.17 5500 6000
G4011 927-1 39.8±0.5 33.2±0.5 20.8min 16.0±0.25 28.3±0.35 3.2±0.2 5.2±0.2 31.8 0.3 40.9 136.6 5591 70.5 135.84 6600
G4015 927-1 39.8±0.5 33.2±0.5 20.8min 16.0±0.25 28.3±0.35 4.55±0.2 7.5±0.2 46.9 0.22 38 169.7 6447 78.3 167 8000
G4025 927 39.8±0.5 33.2±0.5 20.0min 16.0±0.25 28.3±0.35 9.2±0.2 12.8±0.2 71 0.33 68.5 205 14042 158.2 201.06 5800 6000
G40B 1514 39.6±0.45 33.1±0.4 20.4±0.35 16.0±0.25 28.3±0.35(20.22) 7.65±0.15 11.25±0.1 Double-gap 61.8 0.31 63.4 202.3 12838 6200
G40C 1516 39.8±0.45 33.2±0.4 20.4±0.35 16.0±0.25 28.3±0.35(28.22) 5.9±0.15 8.9±0.1 Double-gap 55.3 0.30 57.48 189.2 10875.2
